Symbol

Symbol

Modular Seating

Symbol

Modular Seating

A versatile seating collection that fits right in

Designed by NaughtOne

Symbol is a modular seating collection that fits in anywhere thanks to its simple aesthetic and inherent adaptability. The modular design means it can be kept compact for tight spaces or configured in expansive layouts to create zonal definition on large floorplates. Designed for possibility, Symbol comprises round, curved and linear modules that naturally complement contemporary spaces. Its compact form and clean lines help it slot in seamlessly, whilst its modularity makes change possible should you wish to reimagine it in new layouts.


Design for possibility

Symbol delivers a positive, upright sit that encourages collaboration and dialogue, as well as providing the right kind of comfort for reception areas. The modular seats can be upholstered in any one of NaughtOne’s wide range of textile choices as standard, putting creativity in the hands of specifiers. The optional integrated tabletops come in white or black MDF, or oak or walnut veneers. Choice extends to the sofa legs too: solid oak or walnut, or steel in black, white or a host of other powder-coated colours.

Resources

CAD Files

CAD Files

NaughtOne_Symbol_Product_Sheet.pdf

Product Sheet

Images

Images

“Symbol can be kept compact for tight spaces or configured in expansive layouts to create zonal definition on large floorplates.”

Specifications

SYM1ST

SYM1ST

Symbol Single
Stool
w510 d510 h410
seat 410 (mm)
weight 21.02 kg
w20 d20 h16
seat 16 (in)
weight 46.3 lb

SYMQBEN

SYMQBEN

Symbol Quarter
Circle Bench
w690 d690 h410
seat 410 (mm)
weight 11.4 kg
w27 d27 h16
seat 16 (in)
weight 25.1 lb

SYM1NA

SYM1NA

Symbol Chair
No Arms
w510 d690 h685
seat 410 (mm)
weight 34.5 kg
w20 d27 h27
seat 16 (in)
weight 76.1 lb

SYM11A

SYM11A

Symbol Corner
Chair 1 Arm
w690 d690 h685
seat 410 (mm)
weight 37.4 kg
w27 d27 h27
seat 16 (in)
weight 82.5 lb

SYM12A

SYM12A

Symbol Chair
2 Arms
w870 d690 h685
seat 410 (mm)
weight 30.9 kg
w34.5 d27 h27
seat 16 (in)
weight 68.1 lb

SYM2BEN

SYM2BEN

Symbol 2 Seat
Bench
w1020 d510 h410
seat 410 (mm)
weight 26.5 kg
w40 d20 h16
seat 16 (in)
weight 58.4 lb

SYM180BEN

SYM180BEN

Symbol Semi
Circle Bench
w1380 d690 h410
seat 410 (mm)
weight 19.3 kg
w54.5 d27 h16
seat 16 (in)
weight 42.5 lb

SYM2NA

SYM2NA

Symbol 2 Seater
No Arms
w1020 d690 h685
seat 410 (mm)
weight 33.8 kg
w40 d27 h27
seat 16 (in)
weight 74.5 lb

SYM2RA

SYM2RA

Symbol 2 Seater
Right Arm
w1200 d690 h685
seat 410 (mm)
weight 36.9 kg
w47 d27 h27
seat 16 (in)
weight 81.4 lb

SYM2LA

SYM2LA

Symbol 2 Seater
Left Arm
w1200 d690 h685
seat 410 (mm)
weight 36.9 kg
w47 d27 h27
seat 16 (in)
weight 81.4 lb

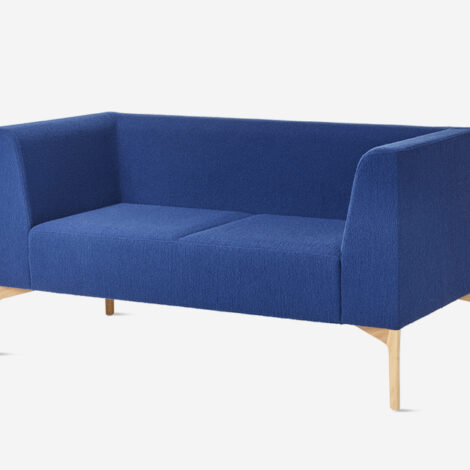

SYM22A

SYM22A

Symbol 2 Seater
2 Arms
w1380 d690 h685
seat 410 (mm)
weight 43 kg
w54.5 d27 h27
seat 16 (in)
weight 94.8 lb

SYM3BEN

SYM3BEN

Symbol 3 Seat
Bench
w1530 d510 h410
seat 410 (mm)
weight 29.9 kg
w60 d20 h16
seat 16 (in)
weight 65.9 lb

SYM3NA

SYM3NA

Symbol 3 Seater
No Arms
w1530 d690 h685
seat 410 (mm)
weight 40 kg
w60 d27 h27
seat 16 (in)
weight 88.1 lb

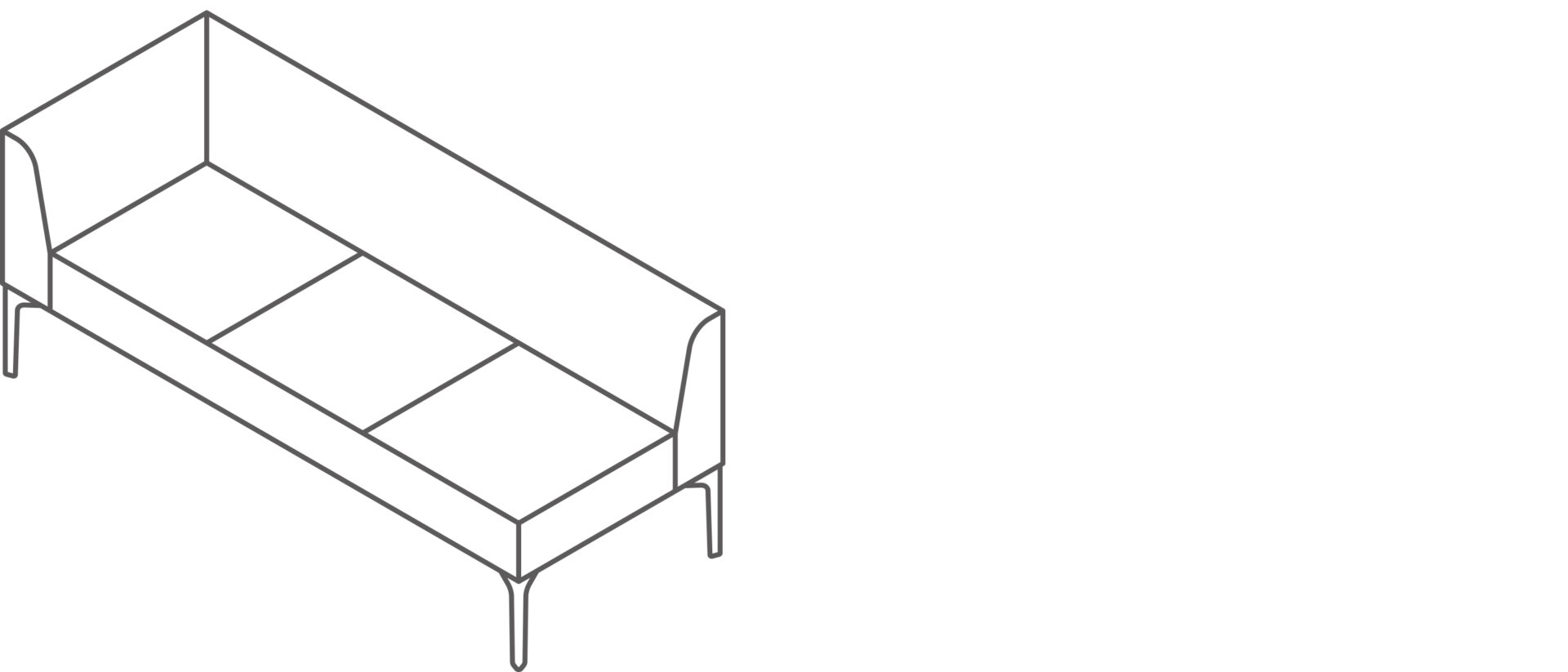

SYM3RA

SYM3RA

Symbol 3 Seater
Right Arm
w1710 d690 h685
seat 410 (mm)
weight 41.6 kg
w67.5 d27 h27
seat 16 (in)
weight 91.7 lb

SYM3LA

SYM3LA

Symbol 3 Seater
Left Arm
w1710 d690 h685
seat 410 (mm)
weight 41.6 kg
w67.5 d27 h27
seat 16 (in)
weight 91.7 lb

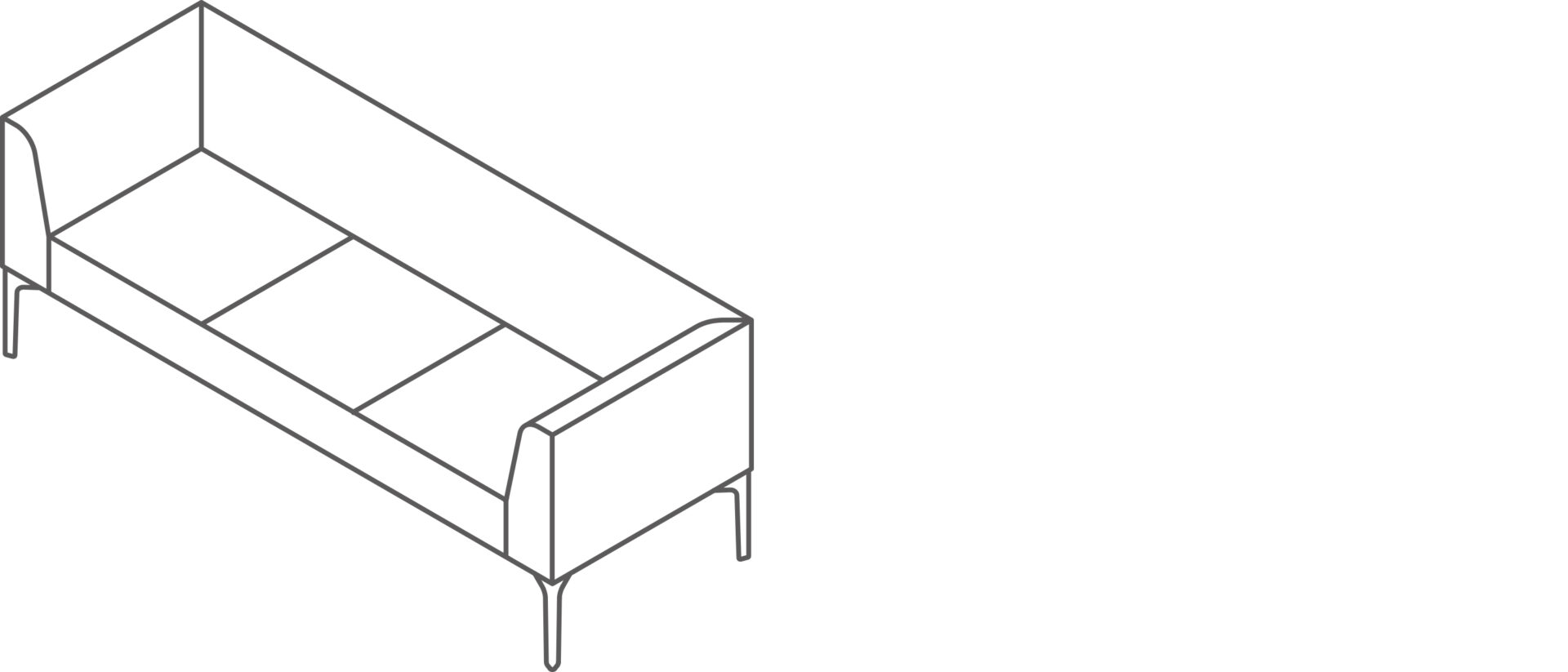

SYM32A

SYM32A

Symbol 3 Seater
2 Arms
w1890 d690 h685
seat 410 (mm)
weight 52.7 kg
w74.5 d27 h27
seat 16 (in)
weight 116.2 lb

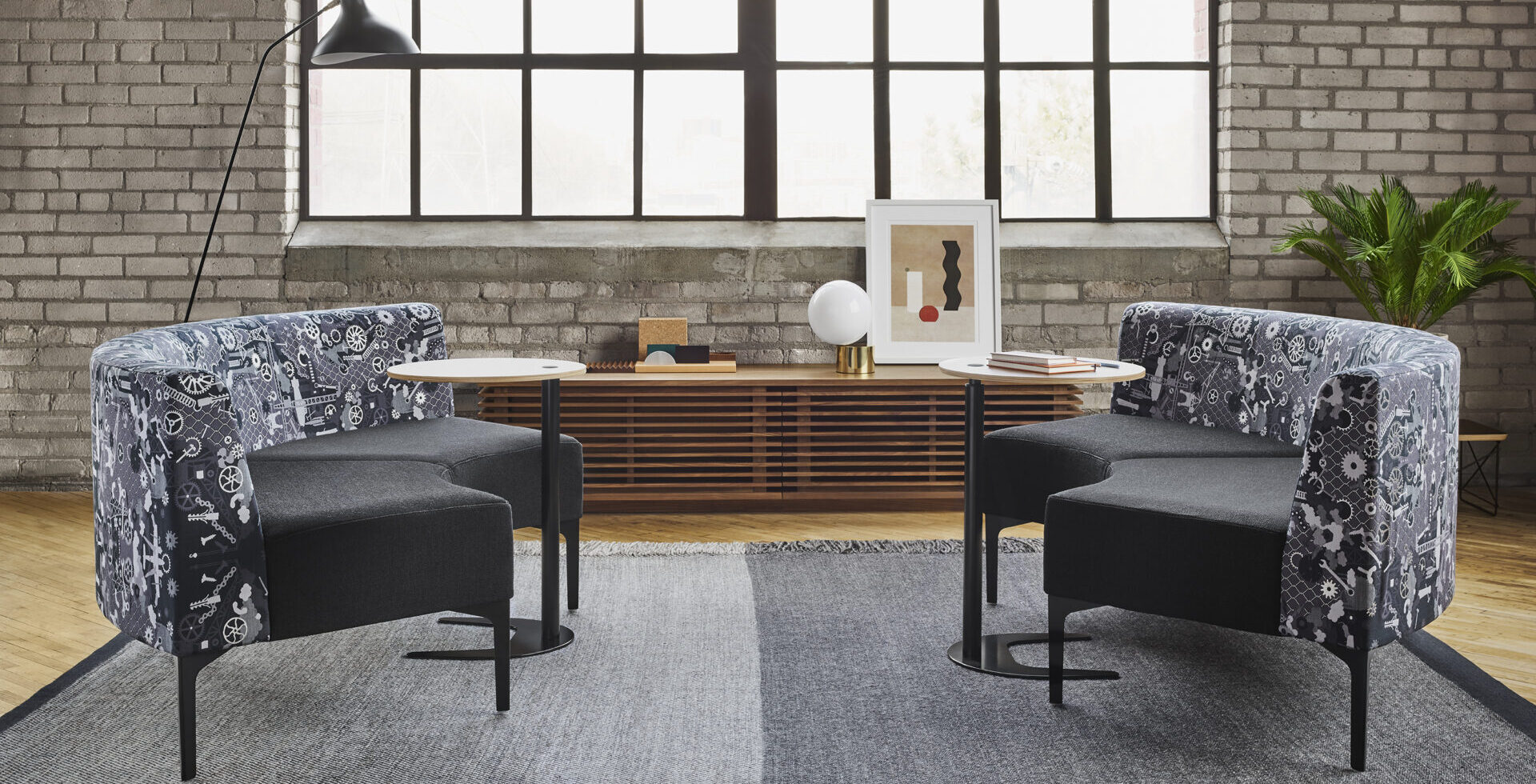

SYM90D

SYM90D

Symbol 90º Curve
Sofa
w1825 d865 h685
seat 410 (mm)
weight 68 kg
w72 d34 h27
seat 16 (in)
weight 149.9 lb

SYM90BEN

SYM90BEN

Symbol 90º Curve
Bench
w1630 d700 h410
seat 410 (mm)
weight 59 kg
w64 d28 h16
seat 16 (in)
weight 130.1 lb

SYM45BEN

SYM45BEN

Symbol 45º Curve
Bench
w890 d570 h410
seat 410 (mm)
weight 22.6 kg
w35 d22.5 h16
seat 16 (in)
weight 49.8 lb

SYM45D

SYM45D

Symbol 45º Curve
Seat
w1025 d740 h685
seat 410 (mm)
weight 22.6 kg
w40.5 d29 h27
seat 16 (in)
weight 49.8 lb

SYMX45D

SYMX45D

Symbol External
45º Curve Seat
w1560 d785 h685
seat 410 (mm)
weight 29 kg
w61.5 d31 h27
seat 16 (in)
weight 63.9 lb

HATSYMTREC

HATSYMTREC

Hatch/Symbol
Table
w690 d510 h410 (mm)
weight 15.3 kg
w27 d20 h16 (in)
weight 34 lb

White/black<br />
steel legs<br />
Standard

White/black
steel legs
Standard

RAL powder<br />
coated legs<br />
NaughtOne<br />
colours

RAL powder
coated legs
NaughtOne
colours

Solid oak<br />
legs

Solid oak
legs

Solid walnut<br />
legs

Solid walnut
legs

Two tone<br />
See price list<br />
for details

Two tone
See price list
for details

NaughtOne RAL palette

Light Pink
RAL 3015

Traffic Red
RAL 3020

Traffic Orange
RAL 2009

Broom Yellow
RAL 1032

Moss Green
RAL 6005

Leaf Green
RAL 6002

Pale Green
RAL 6021

Steel Blue
RAL 5011

Dark Blue
RAL 5001

Pastel Blue
RAL 5024

Oyster
RAL 1013

Signal White
RAL 9003

Silver
RAL 9006

Stone Grey
RAL 7030

Black Grey
RAL 7021

Jet Black
RAL 9005

Symbol Modular seating is available in a range of sizes, configurations and finishes, but for the purpose of this statement we have a specific example from the range: Symbol 2 seater 2 arms with wooden legs.

Recyclable Content
16.9% Recyclable
77.9% Reusable
Recycled Content
3.1% Recycled
77.92% PLYWOOD
11.45% CMHR FOAM
5.15% FABRIC
3.71% MILD STEEL
0.78% STAINLESS STEEL
0.63% MILD STEEL ZINC PLATED
0.35% POLYPROPYLENE

The cold cure foam material has been tested to meet the following standards:

— British standard: 5852:2006 Part 2
— California Technical Bulletin: 117-2013
— Italian standard: UNI 9175-CLASS 1.IM

The flammability standard of the covering fabric is dependent on the choice made by the customer.

SYM12A
Symbol Chair 2 Arms
BS EN 16139:2013, Level 1
Static Load 160 kg
SYM3NA
Symbol 3 Seater No Arms
BS EN 16139:2013, Level 1
Static Load 320 kg
SYM2LA
Symbol 2 Seater Left Arm
BS EN 16139:2013, Level 1
Static Load 320 kg
SYM90D
Symbol 90º Curve Seat
BS EN 16139:2013, Level 1
Static Load 320 kg

Choice comes as standard

Choice comes as standard

A NaughtOne design isn’t just an expression of our creativity – it’s a canvas for expressing your creativity. Which is why Symbol like all NaughtOne products, can be specified in a near endless array of finishes.

Create hotspots, make a statement with bright color pops or blend in with cool neutrals.
