Pullman

Modular Seating

Pullman

Modular Seating

Turn a place into a neighbourhood

Designed by NaughtOne

Pullman Modular is furniture that behaves like architecture – defining, dividing and organising space without the need to build walls or erect screens. It anchors community zones such as cafés and lounges, instantly shapes places into neighbourhoods and enclaves, and offers space for private moments like checking messages, dialling into a call or simply sipping a coffee. It’s a landscape maker that shapes its environment quietly, cohesively and with character. For customers, it’s a simply lovely toolkit.






Legendary DNA

Pullman earned its status as a specifier favourite because it just makes sense: it looks good, it feels solid and you immediately know what it’s for. Pullman Modular is the inevitable next step for the collection – applying the design, feature-set and engineering DNA to a scalable solution that telegraphs its intention but leaves the door wide open for creativity.






Future proofed

Future proofed

These days work often happens in places other than the desk – neighbourhoods that change meaning through the day. These zones fulfil multiple needs: from focus time to meetings, presentations, workshopping and informal collaboration.

With its work height, upright sit and built-in power, Pullman Modular is an incredibly hardworking product that gives designers the tools to solve multiple problems in a single solution.

Not only that, specifiers planning spaces for global clients who need consistency across multiple floorplates are assured of the same look, feel and performance, wherever in the world it shows up.





Because Pullman is built like furniture and not a screen system, it’s also a more reliable and sustainable alternative to fixed joinery, built-in seating or stud walls.

Those solutions are single-life, because they can’t adapt as needs change. Pullman Modular has the potential to be reconfigured, moved or repurposed, supporting change as layouts evolve. No-one can predict the future, but with Pullman Modular you can plan for it.






Give me shelter

Despite its potential for bold, architectural scale, Pullman Modular is a friendly, person-sized, quiet system. The form is solid yet soft-edged, the to-the-floor upholstery cuts visual noise, and though the two screen heights create partition and privacy, they don’t destroy sightlines. You can always have a chat over a Pullman.

It also offers something harder to quantify but easy to recognise: psychological shelter. The feeling of having your back to something solid and the sense of being looked after by furniture – a very human feeling that matters just as much as a plan layout.

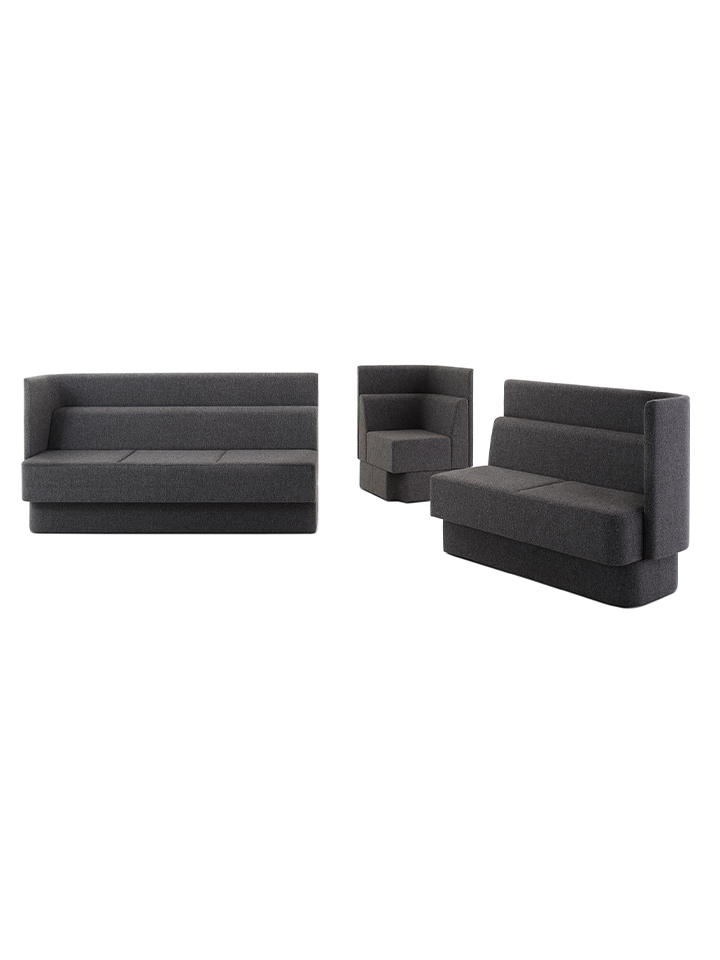

Pullman Modular Seating is just a lovely toolkit for designers.









Resources

CAD Files

CAD Files

pullman_modular_product_sheet_en-gb.pdf

Product Sheet

Images

Images

Specifications

NOPMD1R

NOPMD1R

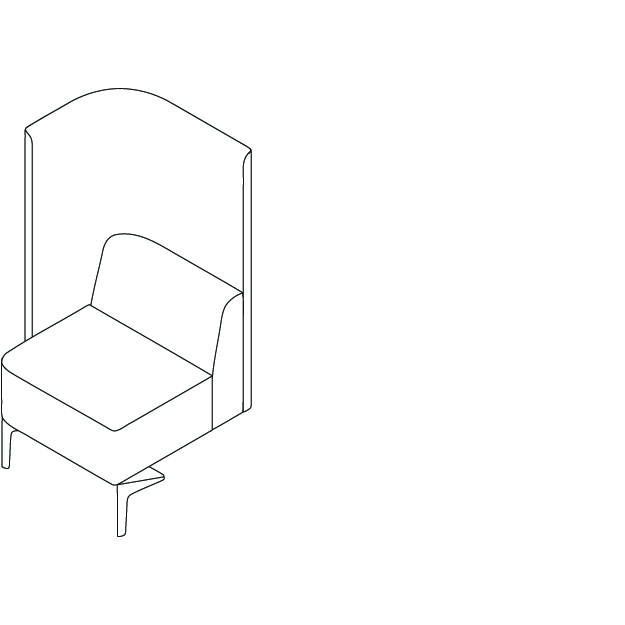

Pullman Modular 1 Seat Right
w650 d675 h1300
seat 450 (mm)
weight 33.8 kg
w25.5 d26.5 h51
seat 17.5 (in)
weight 74.5 lb

NOPMD1M

NOPMD1M

Pullman Modular 1 Seat Middle
w600 d675 h1300
seat 450 (mm)
weight 28 kg
w23.5 d26.5 h51
seat 17.5 (in)
weight 61.5 lb

NOPMD1L

NOPMD1L

Pullman Modular 1 Seat Left
w650 d675 h1300
seat 450 (mm)
weight 33.8 kg
w25.5 d26.5 h51
seat 17.5 (in)
weight 74.5 lb

NOPMD2L

NOPMD2L

Pullman Modular 2 Seat Left
w1250 d675 h1300
seat 450 (mm)
weight 57.5 kg
w49 d26.5 h51
seat 17.5 (in)
weight 127 lb

NOPMD2R

NOPMD2R

Pullman Modular 2 Seat Right
w1250 d675 h1300
seat 450 (mm)
weight 57.5 kg
w49 d26.5 h51
seat 17.5 (in)
weight 127 lb

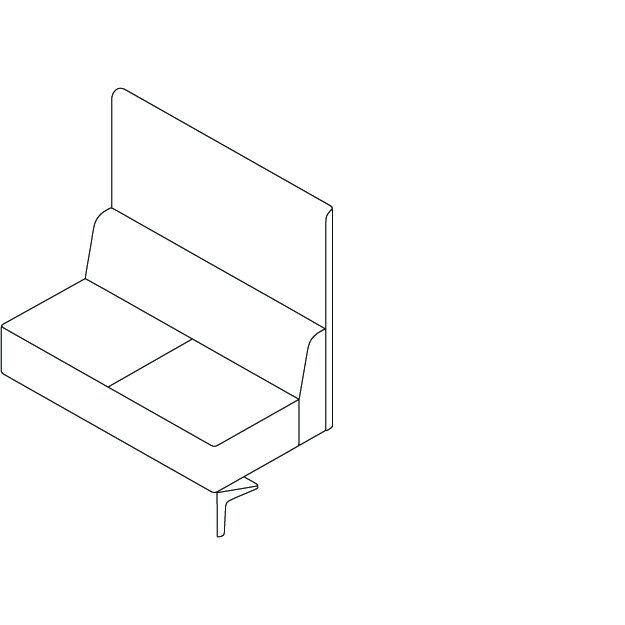

NOPMD2M

NOPMD2M

Pullman Modular 2 Seat Left
w1250 d675 h1300
seat 450 (mm)
weight 57.5 kg
w49 d26.5 h51
seat 17.5 (in)
weight 127 lb

NOPMD3L

NOPMD3L

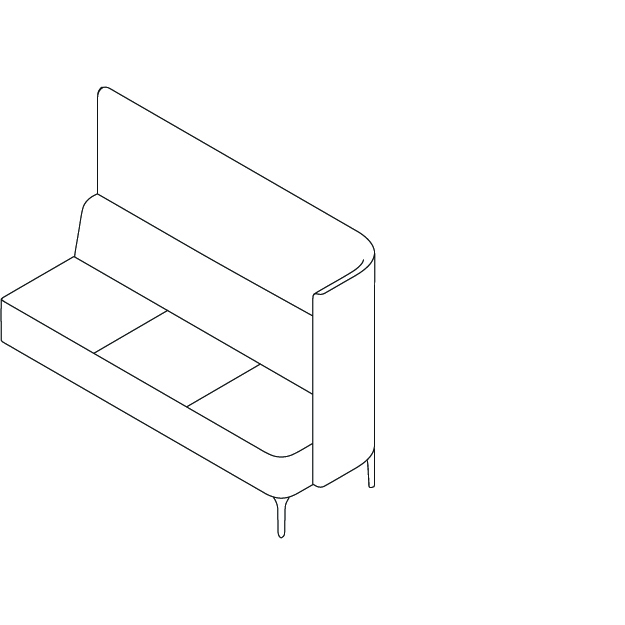

Pullman Modular 3 Seat Left
w1850 d675 h1300
seat 450 (mm)
weight 81.3 kg
w73 d26.5 h51
seat 17.5 (in)
weight 179 lb

NOPMD3R

NOPMD3R

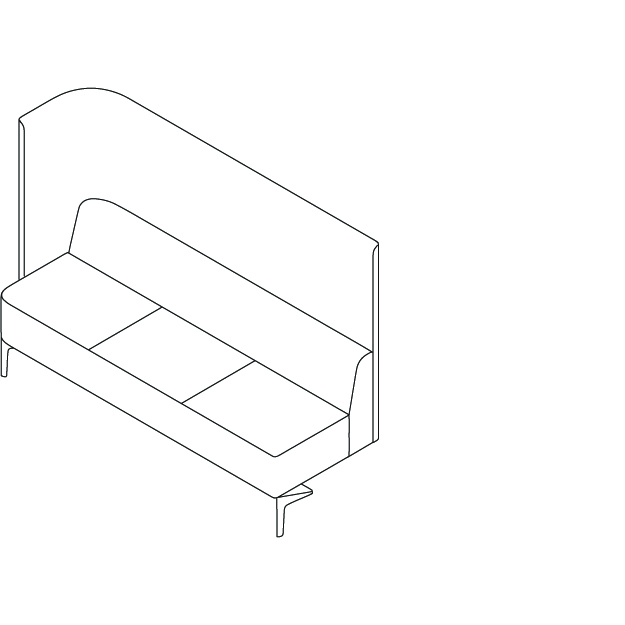

Pullman Modular 3 Seat Right
w1850 d675 h1300
seat 450 (mm)
weight 81.3 kg
w73 d26.5 h51
seat 17.5 (in)
weight 179 lb

NOPMD3M

NOPMD3M

Pullman Modular 3 Seat Middle
w1800 d675 h1300
seat 450 (mm)
weight 75.2 kg
w71 d26.5 h51
seat 17.5 (in)
weight 166 lb

NOPMDU4N

NOPMDU4N

Pullman Modular 45 Degree Internal Curve
w920 d725 h1300
seat 450 (mm)
weight 34.8 kg
w36 d28.5 h51
seat 76.5 (in)
weight 76.5 lb

NOPMDU4X

NOPMDU4X

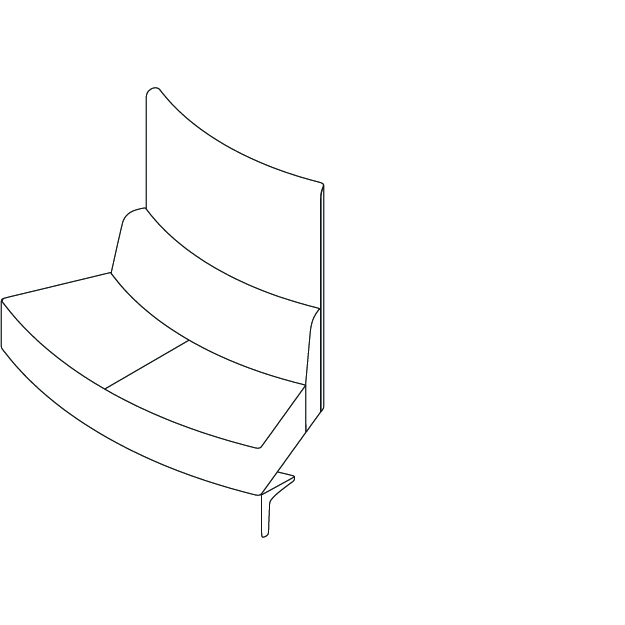

Pullman Modular 45 Degree External Curve
w1456 d770 h1300
seat 450 (mm)
weight 43.2 kg
w57.5 d30.5 h51
seat 17.5 (in)
weight 95 lb

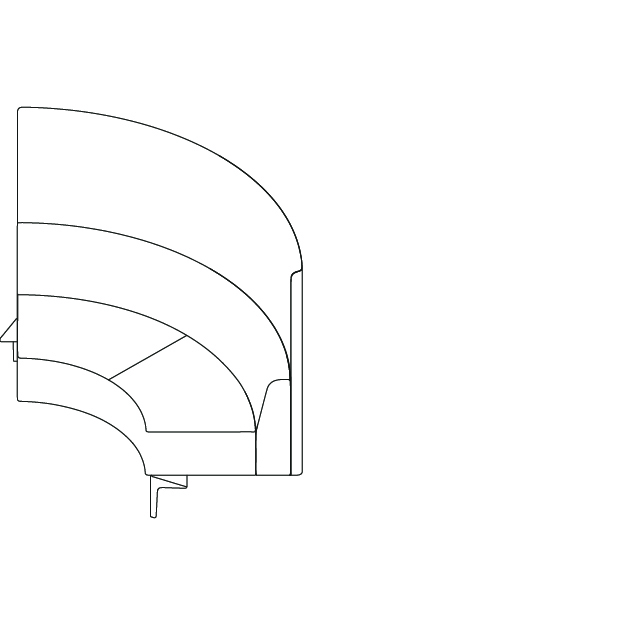

NOPMDU9N

NOPMDU9N

Pullman Modular 90 Degree Internal Curve
w1710 d840 h1300
seat 450 (mm)
weight 66.1 kg
w67.5 d33 h51
seat 17.5 (in)
weight 145.5 lb

NOPMDTC

NOPMDTC

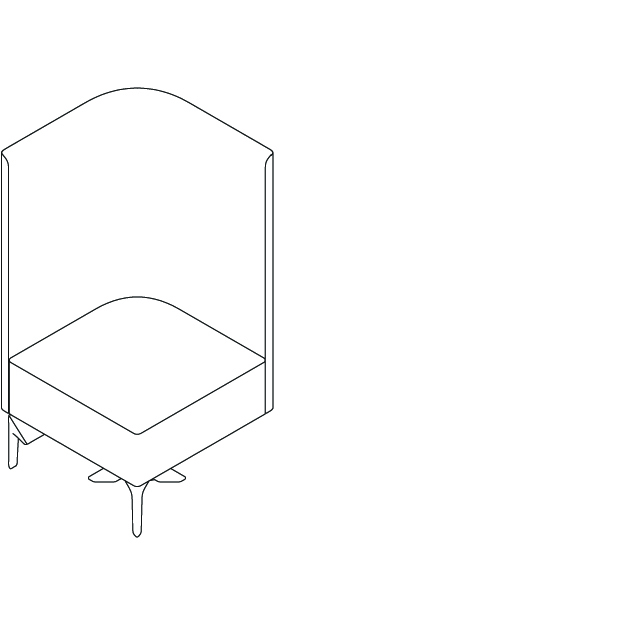

Pullman Modular Table Corner
w675 d675 h1300
weight 38.2 kg
w26.5 d26.5 h51
weight 84 lb

NOPMD1C

NOPMD1C

Pullman Modular 1 Seat Corner
w675 d675 h1300 seat 450 (mm)
weight 42.8 kg
w26.5 d26.5 h51 seat 17.5 (in)
weight 94.5 lb

<p>Upholstered plinth</p>
<p> </p>

Upholstered plinth



<p>NaughtOne RAL powder coated legs</p>
<p> </p>
<p> </p>

NaughtOne RAL powder coated legs





<p>White / black steel legs</p>
<p> </p>

White / black steel legs



<p>White / black MFMDF with matching edge band</p>
<p> </p>

White / black MFMDF with matching edge band



<p>Oak veneer with matching edge band</p>
<p> </p>

Oak veneer with matching edge band



<p>Mid back</p>
<p> </p>
<p> </p>

Mid back





<p>High back</p>
<p> </p>
<p> </p>

High back





<p>Shallow wing</p>
<p> </p>
<p> </p>

Shallow wing





<p>Deep wing</p>
<p> </p>

Deep wing

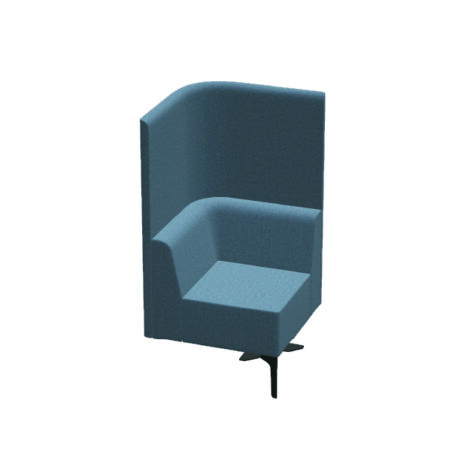

Pullman Modular Seating is available in a range of finishes but for the purpose of this statement we have a specific configuration from the range: Pullman Modular 1 seat corner, 2 seat left and 1 seat right high deep screen.

All figures use UK-based industrial manufacturing data. The kg CO2e calculations are based on the cradle-to-gate phases of a Life Cycle Assessment at NaughtOne’s factory in Elland, UK.





Recyclable Content
14.8% Recyclable
75.4% Reusable
Recycled Content
4.4%
75% BEECH PLYWOOD
10% FABRIC
8% CMHR FOAM
6% MILD STEEL
1% STAINLESS STEEL
0% POLYETHYLENE
0% NYLON







The cold cure foam material has been tested to meet the following standards:

  • British standard: 5852:2006 Part 2
  • California Technical Bulletin: 117-2013

The flammability standard of the covering fabric is dependent on the choice made by the customer.





PMD3LPHD + PMD3RPHD
Pullman Modular 6 Seat Configuration
BS EN 16139:2013, Level 2
Static load 475 kg
ENTIRE COLLECTION
ANSI / BIFMA x5.4 (2020)
Lounge and Public Seating

ANSI / BIFMA x5.5 (2021)
Desks and Tables
PMD1LLHD + PMD3RLHS
Pullman Modular 4 Seat Configuration
QB/T 1952.1 - 2023
Upholstered Furniture-Sofa
Life Cycle Assessment
Category
Emissions (kg CO2e)
Raw Materials
66.29
Energy Consumption
1.5
Waste
0.27
Upstream Transportation
0.33
Cradle to Gate
68.39

Choice comes as standard

Choice comes as standard

A NaughtOne design isn’t just an expression of our creativity – it’s a canvas for expressing your creativity. Which is why Pullman Modular Seating, like all NaughtOne products, can be specified in a near endless array of finishes.



















Make a statement with bright colour pops or blend in with cool neutrals.
